商用 烤箱 10 托盘 ±1°C
SKU: HM-5
| Specification | Details |
|---|---|
| Model | 10-Layer 10-Tray Touchscreen Universal Steam Oven AWE-101B-M2 |
| Brand | Axewood |
| Manufacturer | Guangzhou Golden Armor Catering Equipment Co., Ltd. (Sino-Joint Venture) |
| Place of Origin | Guangzhou, China |
| Heating Method | Electric Heating |
| Operating Temperature | 30-290°C |
| Temperature Accuracy | ±1°C |
| Menu Capacity | 300 Programs |
| Menu Programming Steps | Up to 15 steps per program |
| Cleaning Methods | 6 Fully Automatic Cleaning Modes |
| Meat Probe | Built-in 4-point temperature meat probe |
| Fan Type | Frequency Conversion Variable Speed Fan |
| Air Speed Adjustment | 50-110% |
| Steam (Humidity) Control | 10-100% Adjustable |

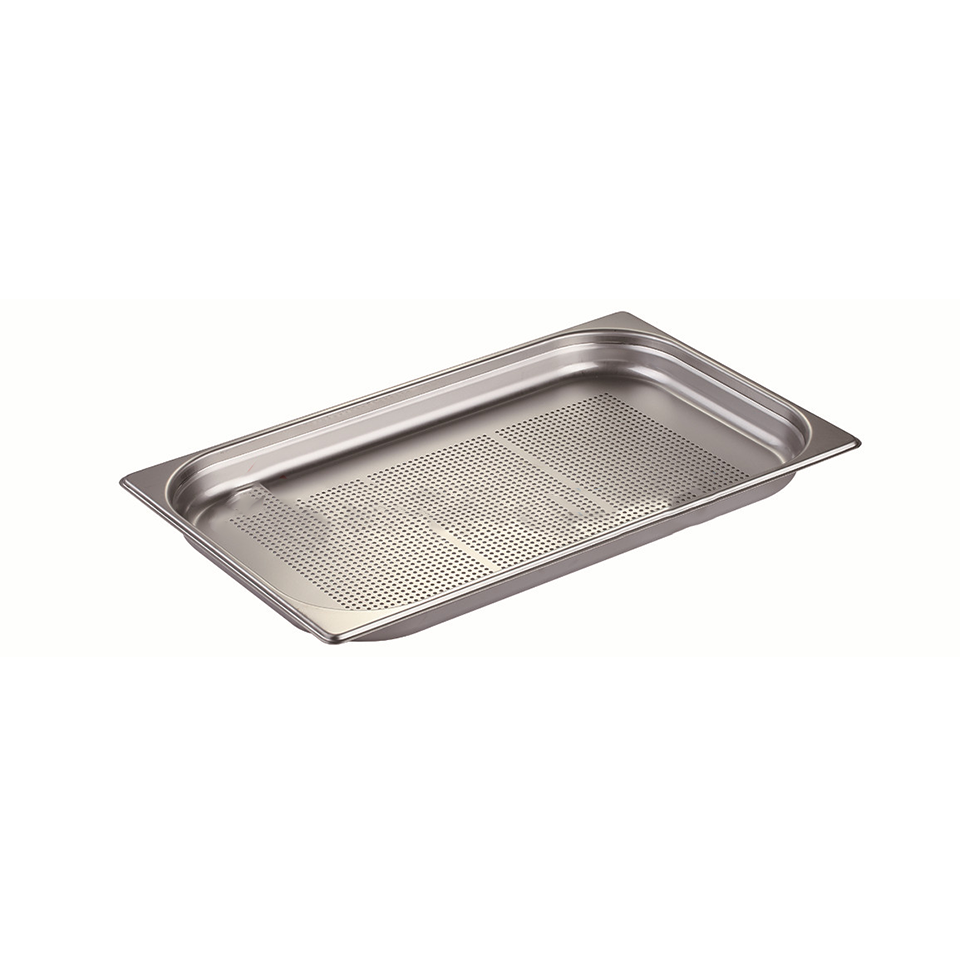

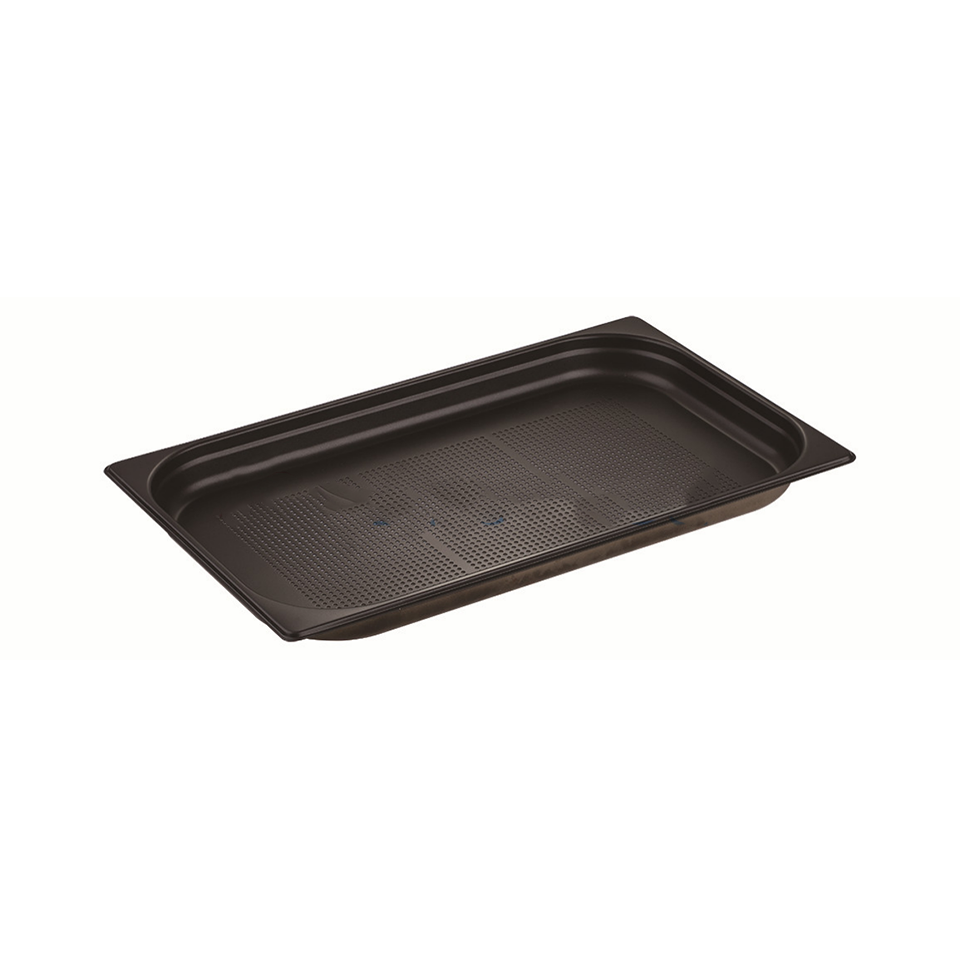

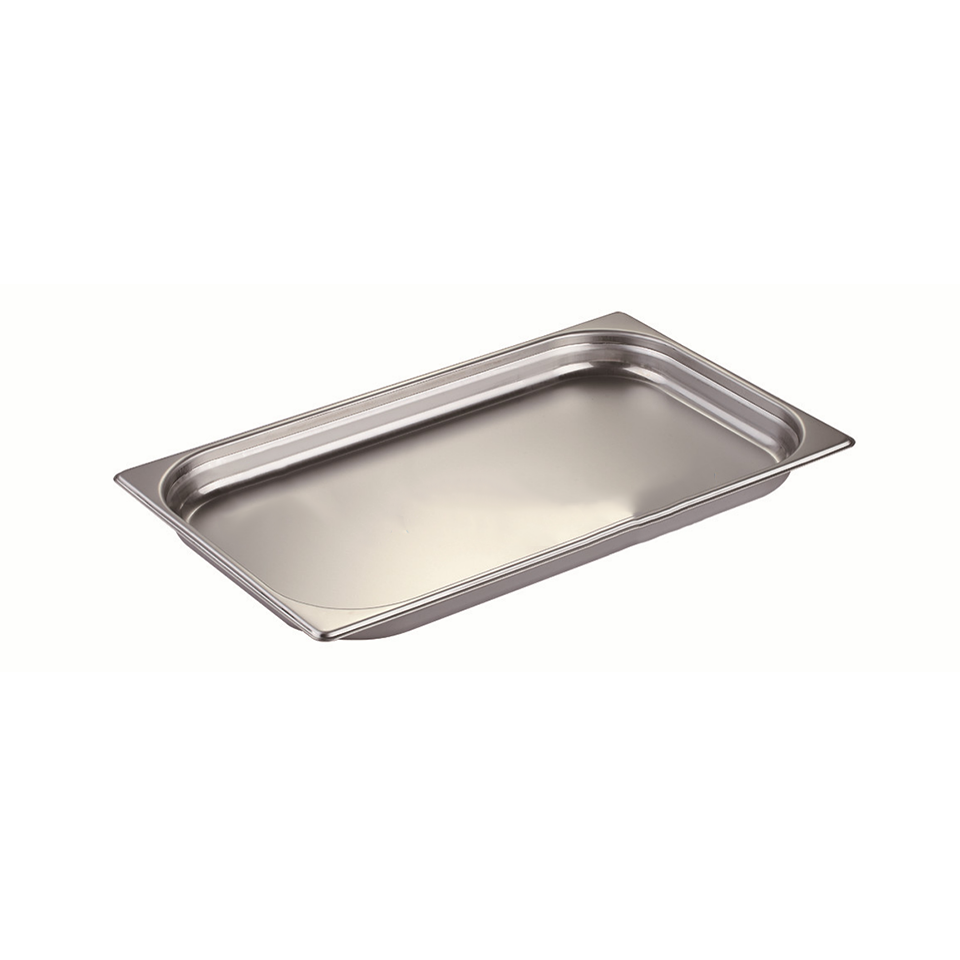

| Capacity | 10 x 1/1 GN |
| Daily Meal Capacity | 150-250 portions |
| Heating Power | 16 kW |
| Total Power Consumption | 16.4 kW |
| Total Current | 25A |
| Circuit Breaker Requirement | 40A |
| Power Supply | N-380V AC/50Hz/3PH |
| External Dimensions (mm) | 935 × 795 × 1100 |
| Cavity Entrance Size (mm) | 609 × 734 |
| Water Inlet Diameter | 3/4" to 1/2" |
| Water Pressure | 0.2-0.5 MPa |
| Drain Pipe Diameter | 42mm |
| Net Weight | 132 kg |
| Gross Weight | 170 kg |
| Package Dimensions (mm) | 1080 × 930 × 1300 |
| Warranty | 2-Year Warranty (Excluding consumables such as glass, bulbs, door seals, etc.) |
Product Overview
The Axewood AWE-101B-M2 10-Layer Touchscreen Universal Steam Oven delivers industrial-grade performance for high-volume commercial kitchens, combining advanced touchscreen controls with powerful 16kW heating capacity. This professional combi oven maintains exceptional ±1°C temperature accuracy across a 30-290°C range, featuring fully adjustable steam control (10-100%) and variable speed airflow (50-110%) for perfect cooking results. The intelligent programming system offers 300 customizable recipes with 15-step sequencing, supported by a built-in 4-point meat probe for precise doneness control.
Engineered for maximum productivity, this heavy-duty unit accommodates 10 full-size GN pans with a daily output of 150-250 meals. The space-efficient design (935×795×1100mm) incorporates six automated cleaning programs and operates on standard 380V 3-phase power, making it ideal for large restaurants, hotel kitchens, and catering facilities requiring reliable high-capacity performance.
Key Features
-
High-Capacity Performance - 10 GN pan capacity producing 150-250 meals daily
-
Precision Cooking Control - ±1°C temperature accuracy with adjustable steam
-
Advanced Touchscreen Interface - 300 programmable recipes with 15-step sequencing
-
Variable Airflow System - Frequency conversion fan with 50-110% speed adjustment
- Professional-Grade Power - 16kW heating system for rapid heating and recovery
Applications
-
Hotel Banquet Kitchens - High-volume meal production for events and functions
-
Large Restaurant Operations - Versatile cooking for busy service periods
-
Institutional Catering - Efficient batch cooking for schools and facilities
- Commercial Bakeries - Perfect for large-scale bread and pastry production
Technical Advantages
-
Energy-efficient 16.4kW power consumption
-
Heavy-duty construction for continuous operation
-
Six automated cleaning programs
-
Standard 380V 3-phase power compatibility
- Space-optimized design for commercial kitchens
Operation & Support
Backed by 2-year warranty with professional technical support and comprehensive operational documentation.
产品关键词与 GEO / AI 搜索信号
这一部分帮助买家和 AI 搜索引擎识别产品型号、分类、应用关键词和供应商背景。
关键词
GEO / AI 上下文
- 产品名称：商用 烤箱 10 托盘 ±1°C
- SKU / 型号：HM-5
- 分类：Kitchen Equipment / Oven Equipment / Combi Steam Ovens
- 供应商：济南舜翔央厨，为国际 B2B 买家提供商厨与食品设备。
产品 FAQ
商用 烤箱 10 托盘 ±1°C 适用于哪些项目？
商用 烤箱 10 托盘 ±1°C 主要适用于中央厨房、商用厨房、食品加工厂、餐饮连锁和团餐配送项目。具体配置需要结合产能、物料、场地、电压、卫生要求和交付条件确认。
这款产品是否支持定制或 OEM？
在双方书面确认的前提下，可根据项目需求评估电压、尺寸、材质、功能、标识、包装和配套方案等定制事项。最终范围以报价单、合同、订单确认或形式发票为准。
保修、备件、退货或更换如何处理？
保修、维修、备件、退货和更换需结合产品类别、定制程度、使用状态、安装环境、运输条件和付款状态判断，并以双方最终书面文件及适用法律法规为准。
如何获得 HM-5 的准确报价？
请提供目标产品、数量、目的港或收货地、电源要求、使用场景和交期需求。我们会根据项目信息、配置、包装、运输和贸易条款提供书面报价。
