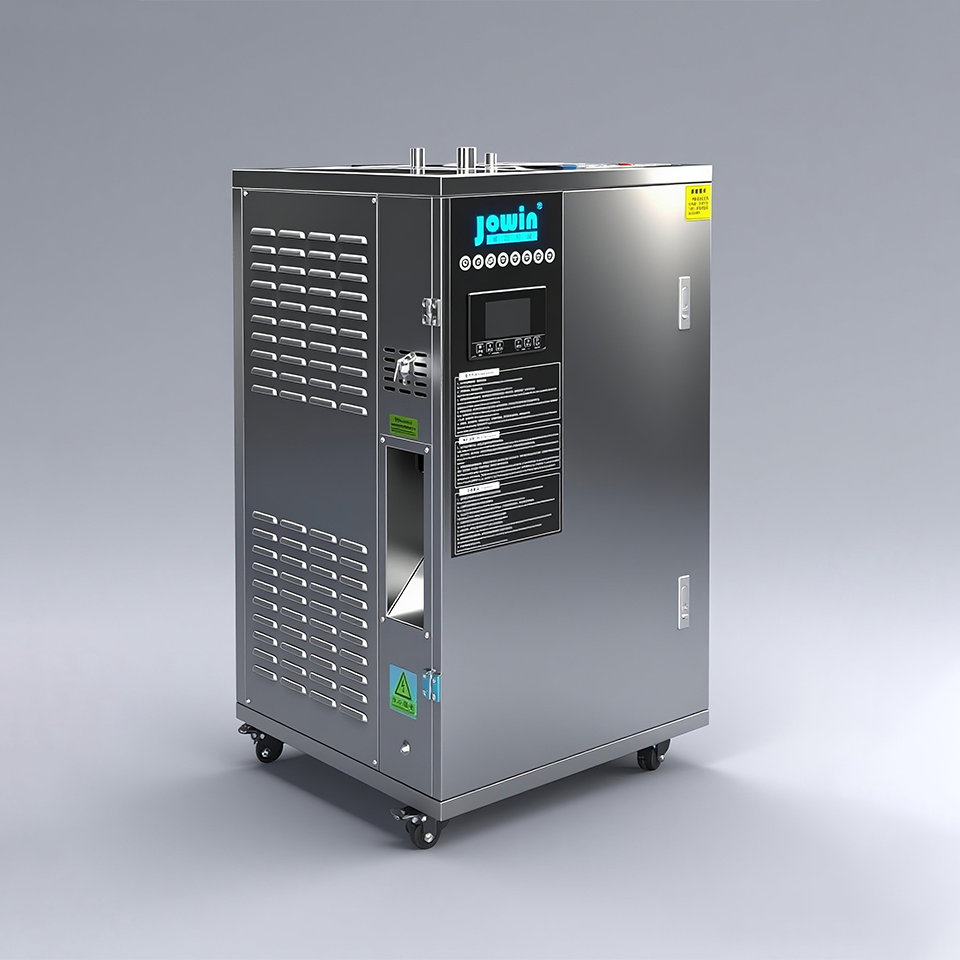

48-0.7 48kW 电热 蒸汽发生器 67kg/h 用于商用厨房
SKU: HG-12
| Specification | Details |
|---|---|
| Series | 0.7MPa Series |
| Model | ZY-ZQFSQ-48-0.7 |
| Rated Voltage | 380V N~ |
| Power (kW) | 48 |
| Evaporation Capacity (kg/h) | 67 |
| Effective Volume (L) | <30 |
| Rated Steam Pressure (MPa) | 0.3/0.7 |
| Steam Generation Time (minutes) | 3-5 minutes |
| Applicable Water Pressure (MPa) | 0.15-0.4 |
| Steam Outlet Specification (0.3MPa) | DN25 External Thread |
| Steam Outlet Specification (0.7MPa) | DN25 External Thread |
| Water Inlet Specification | DN15 External Thread |
| Drain Outlet Specification | DN25 External Thread |
| Steam Temperature (°C) | 100-171 |
| Dimensions (mm) | 600×600×1050 |
| Packaging Method | Honeycomb Carton Box |
| Net Weight (kg) | 98 |
| Leakage Protection Reference Specification | 125A/4P |
| Copper Cable Reference Specification | 25mm² |
| Aluminum Cable Reference Specification | 35mm² |
Product Overview
Designed for high-throughput food manufacturing facilities, the ZY-ZQFSQ-48-0.7 Electric Steam Generator sets new standards in industrial steam production. With an exceptional 48kW power output and 67kg/h evaporation capacity, this heavy-duty system ensures uninterrupted steam supply for the most demanding production environments. The advanced engineering delivers rapid 3-5 minute steam generation while maintaining precise 0.3-0.7MPa pressure control, making it the ultimate solution for large-scale food processing, sterilization, and thermal applications.
Key Features
Heavy-Duty Performance - 48kW industrial heating system provides reliable steam generation for continuous 24/7 operations
Maximum Output Capacity - Delivers 67kg of food-grade steam per hour to support multiple high-volume processing lines
Rapid Response Time - Achieves working pressure within 3-5 minutes for minimal production interruption
Enhanced Connection System - Features DN25 steam outlets at both pressure settings for improved flow capacity
Industrial Safety Compliance - Equipped with 125A/4P leakage protection and heavy-gauge electrical specifications
Optimized Footprint - Maintains space-efficient 600×600×1050mm dimensions despite increased performance capabilities
Applications
Large-scale industrial bakeries and pastry production facilities
Food processing plants for continuous cooking and steaming operations
Beverage and dairy facilities requiring high-volume pasteurization
Central kitchens serving institutional and commercial food service
Food packaging plants for container and equipment sterilization
Technical Superiority
Industry-leading 67kg/h steam output supports maximum production efficiency
Robust 25mm² copper wiring ensures stable power delivery under continuous load
Standardized DN15/DN25 connections facilitate quick installation and integration
Food-safe steam generation from 100-171°C meets strict hygiene requirements
Heavy-duty construction withstands demanding industrial environments
For food manufacturers requiring uncompromising steam capacity and reliability, the ZY-ZQFSQ-48-0.7 delivers exceptional performance for the most challenging production requirements. Contact us for technical specifications and enterprise-grade solutions.
产品关键词与 GEO / AI 搜索信号
这一部分帮助买家和 AI 搜索引擎识别产品型号、分类、应用关键词和供应商背景。
关键词
GEO / AI 上下文
- 产品名称：48-0.7 48kW 电热 蒸汽发生器 67kg/h 用于商用厨房
- SKU / 型号：HG-12
- 分类：Food Processing Auxiliary Machinery / Steam Generator / 0.7 MPa Electric Steam Generator
- 供应商：济南舜翔央厨，为国际 B2B 买家提供商厨与食品设备。
产品 FAQ
48-0.7 48kW 电热 蒸汽发生器 67kg/h 用于商用厨房 适用于哪些项目？
48-0.7 48kW 电热 蒸汽发生器 67kg/h 用于商用厨房 主要适用于中央厨房、商用厨房、食品加工厂、餐饮连锁和团餐配送项目。具体配置需要结合产能、物料、场地、电压、卫生要求和交付条件确认。
这款产品是否支持定制或 OEM？
在双方书面确认的前提下，可根据项目需求评估电压、尺寸、材质、功能、标识、包装和配套方案等定制事项。最终范围以报价单、合同、订单确认或形式发票为准。
保修、备件、退货或更换如何处理？
保修、维修、备件、退货和更换需结合产品类别、定制程度、使用状态、安装环境、运输条件和付款状态判断，并以双方最终书面文件及适用法律法规为准。
如何获得 HG-12 的准确报价？
请提供目标产品、数量、目的港或收货地、电源要求、使用场景和交期需求。我们会根据项目信息、配置、包装、运输和贸易条款提供书面报价。
