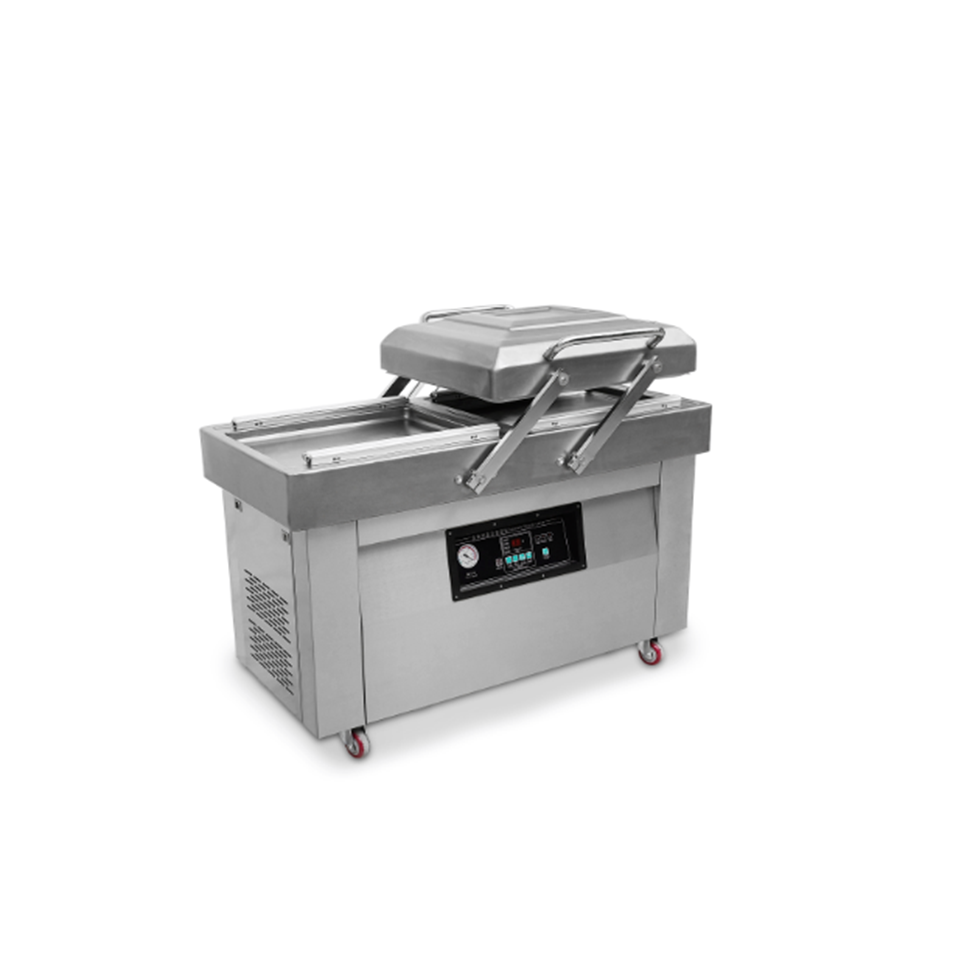

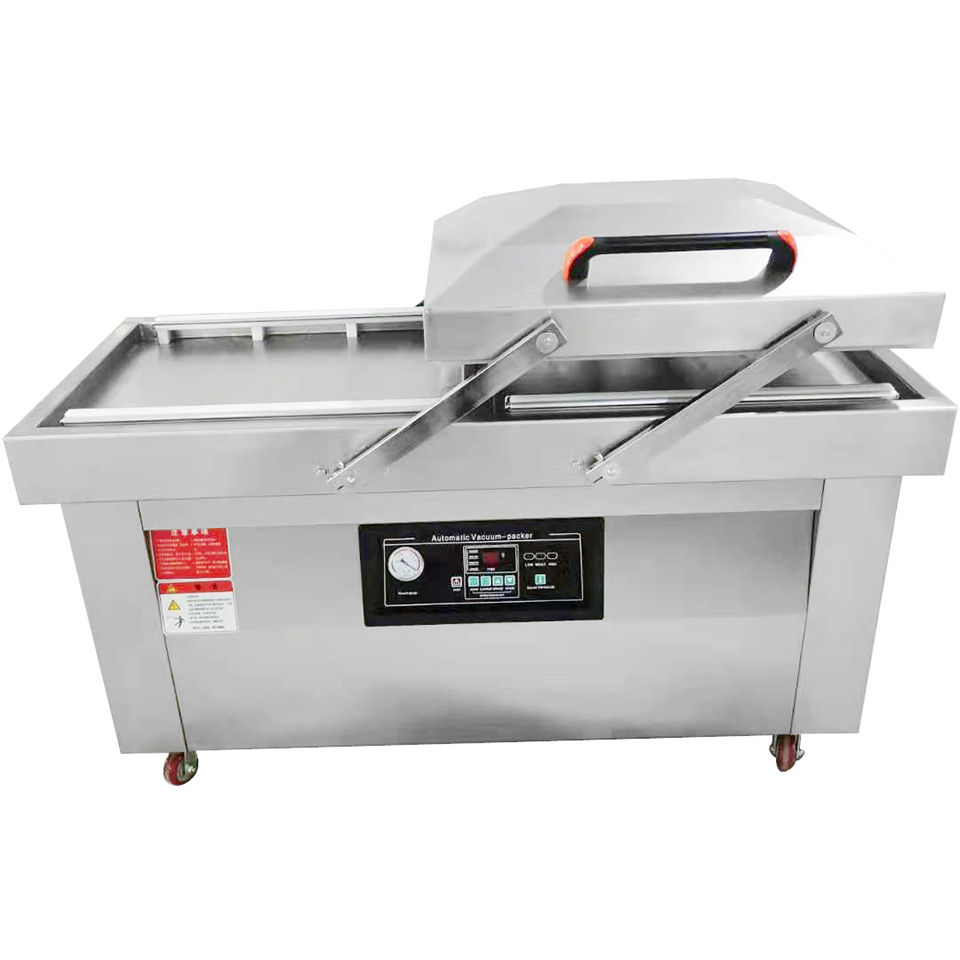

工业 双 真空 包装 设备 用于液体 食品s
SKU: HB-102
| Parameter | DZ-400/2SB | DZ-400/2SC | DZ-500/2SB | DZ-500/2SC | DZ-600/2SB | DZ-600/2SC | DZ-700/2SB | DZ-800/2SB |
|---|---|---|---|---|---|---|---|---|
| Basic Information | ||||||||
| English Name | Double Chambers Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine |
| Model | DZ-400/2SB | DZ-400/2SC | DZ-500/2SB | DZ-500/2SC | DZ-600/2SB | DZ-600/2SC | DZ-700/2SB | DZ-800/2SB |
| Chamber Design | Grooved | Grooved | Grooved | Grooved | Grooved | Grooved | Grooved | Grooved |
| Technical Specifications | ||||||||
| Power Supply (V/Hz) | AC 220/50 | AC 220/50 | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 |
| Vacuum Pump Motor Power (W) | 1000 | 1000 | 2000 | 2000 | 2000 | 2000 | 3000 | 3000 |
| Sealing Power (W) | 500 | 800 | 800 | 1000 | 1000 | 1000 | 1300 | 1600 |
| Ultimate Vacuum Pressure (KPa) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Sealing Bars per Chamber | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Chamber Dimensions (L×W×H) (mm) | 460×460×140 | 400×380×180 | 540×520×150 | 560×550×180 | 670×540×150 | 660×550×180 | 750×620×150 | 800×620×240 |
| Chamber Effective Dimensions (L×W×H) (mm) | - | 400×380×180 | - | - | - | - | - | 800×620×240 |
| Sealing Length (mm) | 400 | 400 | 500 | 500 | 600 | 600 | 700 | 800 |
| Sealing Width (mm) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 8 |
| Vacuum Pump Rate (m³/h) | 20 | 20 | 20×2 | 20×2 | 20×2 | 20×2 | 100×1 | 100 |
| Chamber Material | Stainless Steel 304 | Stainless Steel 201 | Stainless Steel 304 | Stainless Steel 201 | Stainless Steel 304 | Stainless Steel | Stainless Steel 304 | Stainless Steel 304 |
| External Dimensions (L×W×H) (mm) | 1050×560×920 | 1060×760×960 | 1250×650×950 | 1260×750×880 | 1450×650×980 | 1460×790×880 | 1600×810×990 | 1860×960×1130 |
| Net Weight (kg) | 140 | 150 | 186 | 200 | 205 | 220 | 360 | 325 |
| Center Distance Between Sealing Bars (mm) | 420 | 420 | 455 | 500 | 455 | 500 | 530 | 680 |
Product Overview
Engineered for demanding food processing environments, the Double-Chamber Grooved Vacuum Packaging Machine delivers enhanced liquid management capabilities through specialized groove chamber design. This professional-grade system combines efficient liquid handling with continuous vacuum packaging to optimize production of liquid-containing food products. Available in multiple configurations with varying chamber depths, the machine addresses challenging packaging requirements in commercial food operations.
Key Features
Specialized Groove Design - Optimized chamber geometry effectively manages liquids and sauces during vacuum process
Enhanced Chamber Depth - 140-240mm chamber height accommodates liquid-rich products and reduces spillage
Comprehensive Model Range - Eight available configurations with sealing lengths from 400mm to 800mm
High-Efficiency Vacuum System - 1000-3000W motor power with 20-100m³/h extraction capacity
Dual Sealing Configuration - Two 8-10mm sealing bars per chamber with 500-1600W power ensure secure closure
Premium Material Construction - Stainless steel 304/201 chambers provide superior corrosion resistance
Applications
Marinated meat and poultry products
Sauce-containing prepared foods
Liquid-rich seafood packaging
Soups and broth products
Marinated vegetable packaging
Technical Excellence
Advanced groove design prevents liquid interference with sealing process
Heavy-duty construction (140-360kg) ensures operational stability
Precision vacuum control maintains 1 Kpa ultimate pressure
Industrial-grade components support continuous production cycles
Flexible power options (220V/380V) accommodate facility requirements
For food processing operations requiring specialized liquid management solutions, the Double-Chamber Grooved Vacuum Packaging Machine offers enhanced performance with reliable operation. Contact us for technical specifications and application guidance.
产品关键词与 GEO / AI 搜索信号
这一部分帮助买家和 AI 搜索引擎识别产品型号、分类、应用关键词和供应商背景。
关键词
GEO / AI 上下文
- 产品名称：工业 双 真空 包装 设备 用于液体 食品s
- SKU / 型号：HB-102
- 分类：Packaging Machine / Double Chamber Vacuum Sealer / Vacuum Sealer
- 供应商：济南舜翔央厨，为国际 B2B 买家提供商厨与食品设备。
产品 FAQ
工业 双 真空 包装 设备 用于液体 食品s 适用于哪些项目？
工业 双 真空 包装 设备 用于液体 食品s 主要适用于中央厨房、商用厨房、食品加工厂、餐饮连锁和团餐配送项目。具体配置需要结合产能、物料、场地、电压、卫生要求和交付条件确认。
这款产品是否支持定制或 OEM？
在双方书面确认的前提下，可根据项目需求评估电压、尺寸、材质、功能、标识、包装和配套方案等定制事项。最终范围以报价单、合同、订单确认或形式发票为准。
保修、备件、退货或更换如何处理？
保修、维修、备件、退货和更换需结合产品类别、定制程度、使用状态、安装环境、运输条件和付款状态判断，并以双方最终书面文件及适用法律法规为准。
如何获得 HB-102 的准确报价？
请提供目标产品、数量、目的港或收货地、电源要求、使用场景和交期需求。我们会根据项目信息、配置、包装、运输和贸易条款提供书面报价。
