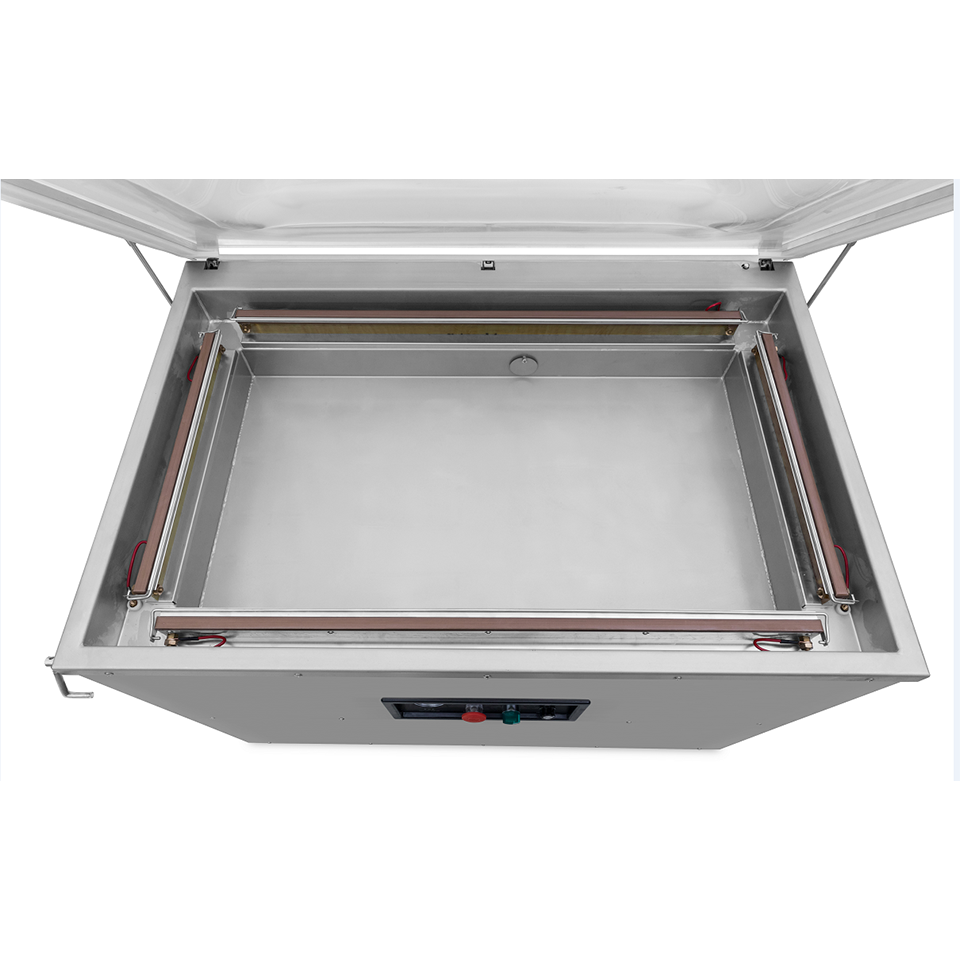

DZ-450/3E 单 3- 真空 包装 设备
SKU: HB-91
| Parameter | DZ-450/3E Single Chamber | DZ-450/4E Single Chamber |
|---|---|---|
| Basic Information | ||
| English Name | Single Chamber 3-Sealing Bar Vacuum Packaging Machine | Single Chamber 4-Sealing Bar Vacuum Packaging Machine |
| Model | DZ-450/3E | DZ-450/4E |
| Technical Specifications | ||
| Power Supply (V/Hz) | AC 220/50 | AC 220/50 |
| Vacuum Pump Motor Power (W) | 2000 | 2000 |
| Sealing Power (W) | 1400 | 1400 |
| Ultimate Vacuum Pressure (KPa) | 1 | 1 |
| Number of Sealing Bars per Chamber | 3 | 4 |
| Chamber Dimensions (L×W×H) (mm) | 1000×540×115 | 1000×600×150 |
| Sealing Length (mm) | 450/850 | 450/850 |
| Sealing Width (mm) | 10 | 10 |
| Vacuum Pump Rate (m³/h) | 20×2 | 20×2 |
| Chamber Material | Stainless Steel 201 | Stainless Steel 201 |
| External Dimensions (L×W×H) (mm) | 1130×660×940 | 1130×720×940 |
| Net Weight (kg) | 200 | 210 |
| Center Distance Between Sealing Bars (mm) | 910 | 910/530 |
Product Overview
Engineered for high-volume food processing operations, the Single-Chamber Multi-Seal Vacuum Packaging Machine delivers exceptional packaging efficiency through advanced multi-bar sealing technology. This professional-grade system combines powerful vacuum performance with multiple sealing configurations to maximize production output while maintaining superior package integrity. Available in three and four sealing bar configurations, the machine addresses demanding packaging requirements in commercial food production environments.
Key Features
Advanced Multi-Seal Configuration - Choose between 3-seal (DZ-450/3E) and 4-seal (DZ-450/4E) models for enhanced production flexibility
High-Capacity Vacuum System - 2000W motor power with 40m³/h total extraction capacity ensures rapid, consistent air removal
Dual Sealing Length Options - 450mm and 850mm sealing lengths support various packaging formats and production needs
Extended Chamber Design - 1000mm chamber length with 540-600mm width accommodates multiple products per cycle
Robust Construction - Stainless steel 201 chambers and heavy-duty frames (200-210kg) ensure long-term reliability
Optimized Sealing Performance - 1400W sealing power with 10mm wide seals delivers secure, airtight packaging
Applications
High-volume food processing operations
Batch packaging of multiple products
Portioned food and meal component packaging
Meat and poultry processing facilities
Prepared food and ingredient packaging
Technical Excellence
Precision vacuum control maintains 1 Kpa ultimate pressure for optimal preservation
Industrial-grade components support continuous 24/7 operation
Extended sealing bar configuration increases production efficiency
Standard 220V power compatibility simplifies facility integration
Heavy-duty construction withstands demanding production environments
For food processing operations requiring high-capacity packaging solutions, the Single-Chamber Multi-Seal Vacuum Packaging Machine offers enhanced production capabilities with professional-grade reliability. Contact us for technical specifications and configuration guidance.
产品关键词与 GEO / AI 搜索信号
这一部分帮助买家和 AI 搜索引擎识别产品型号、分类、应用关键词和供应商背景。
关键词
GEO / AI 上下文
- 产品名称：DZ-450/3E 单 3- 真空 包装 设备
- SKU / 型号：HB-91
- 分类：Packaging Machine / Single Chamber Vacuum Sealer / Vacuum Sealer
- 供应商：济南舜翔央厨，为国际 B2B 买家提供商厨与食品设备。
产品 FAQ
DZ-450/3E 单 3- 真空 包装 设备 适用于哪些项目？
DZ-450/3E 单 3- 真空 包装 设备 主要适用于中央厨房、商用厨房、食品加工厂、餐饮连锁和团餐配送项目。具体配置需要结合产能、物料、场地、电压、卫生要求和交付条件确认。
这款产品是否支持定制或 OEM？
在双方书面确认的前提下，可根据项目需求评估电压、尺寸、材质、功能、标识、包装和配套方案等定制事项。最终范围以报价单、合同、订单确认或形式发票为准。
保修、备件、退货或更换如何处理？
保修、维修、备件、退货和更换需结合产品类别、定制程度、使用状态、安装环境、运输条件和付款状态判断，并以双方最终书面文件及适用法律法规为准。
如何获得 HB-91 的准确报价？
请提供目标产品、数量、目的港或收货地、电源要求、使用场景和交期需求。我们会根据项目信息、配置、包装、运输和贸易条款提供书面报价。
