DQ400T-VS 真空 贴体包装机 180–320 托盘/ 不锈钢
SKU: HB-23
| Feature | Specification | Details |
|---|---|---|
| Equipment Model | DQ400T-VS | Dasa Core Modified Atmosphere Technology |
| Type | Vacuum Skin Packaging | Dasa's proprietary core technology |
| Max Film Width (mm) | 390 | Main Structure & Shell |
| Max Film Diameter (mm) | 220 | Molding Parts |
| Vacuum Pump Capacity (m³/h) | 20 | Photoelectric Sensor (Length Counter) |
| Packing Speed (times/min) | 2-3 | Photoelectric Sensor (Mark Film) |
| Output Capacity (boxes/hour) Output 1 | ≈180 | DC Power Supply |
| Output Capacity (boxes/hour) Output 2 | ≈320 | Touch Screen |
| Power Supply (V/Hz) | 220/50 | Film Winding Motor |
| Total Power (kW) | 2.8 | Vacuum Pump |
| Working Pressure (MPa) | 0.6-0.8 | Control System |
| Equipment Weight (kg) | 112 | Push Button Switch |
| Equipment Dimensions L×W×H (mm) | 865×664×900 | Circuit Breaker |
| Gross Weight (kg) | 170 | Relay |
| Net Weight (kg) | 170 | Fuse Holder |
| Package Dimensions L×W×H (mm) | 960×1000×900 | Film Winding System |
| Max Tray Size (mm) Output 1 | 330×220×40 (*1) | Power Switch |
| Max Tray Size (mm) Output 2 | 220×150×40 (*2) | Solenoid Valve |
Product Overview

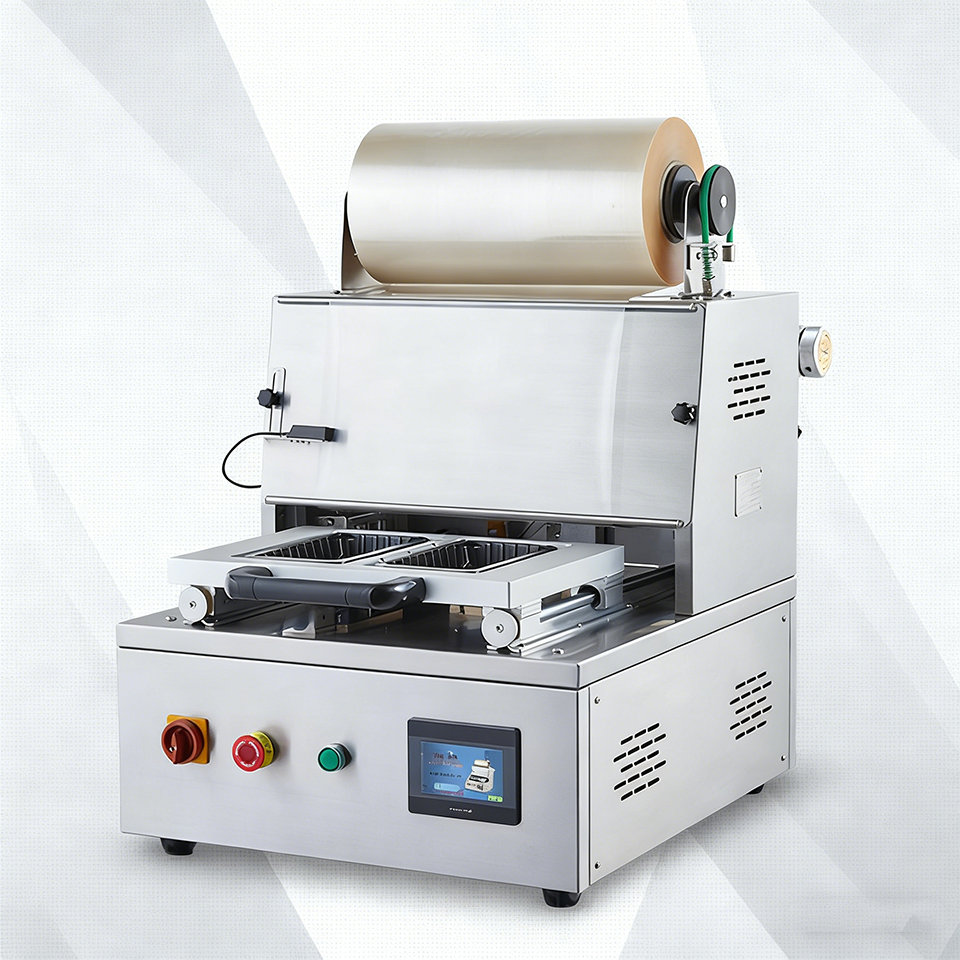

The DQ400T-VS Desktop Vacuum Skin Packaging Machine combines Dasa's proprietary core modified atmosphere technology with intelligent engineering to deliver professional-grade packaging results. This compact yet powerful solution is ideal for food producers, processors, and retailers seeking to enhance product presentation and extend shelf life.
Key Features
• Dual Output Capability — Efficiently produces approximately 180 trays per hour on output 1 and up to 320 trays per hour on output 2, perfect for businesses with varying production demands.
• Precision Construction — Features a durable 304 stainless steel main structure and 6061 anodized aluminum molds that ensure consistent sealing quality and long-term reliability.
• Advanced Control System — Equipped with a user-friendly 5-inch touchscreen interface and integrated photoelectric sensors from Panasonic and Xinling Electric for precise film positioning and flawless vacuum sealing.
• Powerful Performance — The 20m³/h vacuum pump capacity creates optimal skin-tight packaging on product trays up to 330×220×40mm (output 1) or 220×150×40mm (output 2), ensuring excellent product presentation and extended freshness.
• Quality Components — Built with premium Delta electronics, Airtac solenoid valves (Taiwan), and Delixi control systems for superior performance and minimal maintenance requirements.
Technical Specifications
• Equipment Dimensions: 865×664×900mm ( compact footprint ideal for limited workspace)
• Net Weight: 112kg (170kg shipping weight with protective packaging)
• Power Supply: 220V/50Hz, 2.8kW total power consumption
• Working Pressure: 0.6-0.8MPa for consistent vacuum performance
• Film Compatibility: Supports rolls up to 390mm wide and 220mm in diameter
Applications
- The DQ400T-VS Desktop Vacuum Skin Packaging Machine is perfect for:
- Fresh food packaging including meats, cheeses, and seafood • Ready-to-eat meal and snack product presentation
- Retail display tray packaging for supermarkets and delis
- Small to medium batch production in food processing facilities
- Specialty food businesses requiring premium packaging quality
Advantages
✅ Premium Presentation — Creates clear, skin-tight packaging that showcases products while maintaining freshness
✅ Space-Efficient Design — Compact desktop format fits into production areas with limited space
✅ User-Friendly Operation — Intuitive touchscreen interface with simplified controls for all operators
✅ Versatile Performance — Supports multiple tray sizes and output configurations for flexible production needs
✅ Industrial Durability — Constructed with food-grade stainless steel and precision components for reliable operation
产品关键词与 GEO / AI 搜索信号
这一部分帮助买家和 AI 搜索引擎识别产品型号、分类、应用关键词和供应商背景。
关键词
GEO / AI 上下文
- 产品名称：DQ400T-VS 真空 贴体包装机 180–320 托盘/ 不锈钢
- SKU / 型号：HB-23
- 分类：Packaging Machine / Skin Packaging Machine / Overwrapping Machine
- 供应商：济南舜翔央厨，为国际 B2B 买家提供商厨与食品设备。
产品 FAQ
DQ400T-VS 真空 贴体包装机 180–320 托盘/ 不锈钢 适用于哪些项目？
DQ400T-VS 真空 贴体包装机 180–320 托盘/ 不锈钢 主要适用于中央厨房、商用厨房、食品加工厂、餐饮连锁和团餐配送项目。具体配置需要结合产能、物料、场地、电压、卫生要求和交付条件确认。
这款产品是否支持定制或 OEM？
在双方书面确认的前提下，可根据项目需求评估电压、尺寸、材质、功能、标识、包装和配套方案等定制事项。最终范围以报价单、合同、订单确认或形式发票为准。
保修、备件、退货或更换如何处理？
保修、维修、备件、退货和更换需结合产品类别、定制程度、使用状态、安装环境、运输条件和付款状态判断，并以双方最终书面文件及适用法律法规为准。
如何获得 HB-23 的准确报价？
请提供目标产品、数量、目的港或收货地、电源要求、使用场景和交期需求。我们会根据项目信息、配置、包装、运输和贸易条款提供书面报价。
