DQ305L-V 立式 MAP 真空 包装 设备 带280mm
SKU: HB-24
| Feature | Specification | Details |
|---|---|---|
| Equipment Model | DQ305L-V | Dasa Core Modified Atmosphere Technology |
| Packaging Type | Vacuum Replacement | Dasa's Proprietary Core Technology |
| Max Film Width (mm) | 280 | Main Structure & Shell - Stainless Steel |
| Max Film Diameter (mm) | 220 | Molding Parts - 6061 Aluminum |
| Gas Replacement Rate | ≥99% | Photoelectric Sensor (Length Counter) - Dasa Self-developed |
| Gas Mixing Accuracy (%) | ±2% fluctuation | Photoelectric Sensor (Mark Film) - Xinling Electric |
| Packing Speed (times/min) | 3-4 | DC Power Supply - Delta |
| Output Capacity (boxes/hour) Output 1 | ≈240 | Cylinder - Airtac (Taiwan) |
| Output Capacity (boxes/hour) Output 2 | ≈400 | Solenoid Valve - Airtac (Taiwan) |
| Vacuum Pump Capacity (m³/h) | 20 | Touch Screen - Kunlun Tongtao / Fanee |
| Power Supply (V/Hz) | 220/50 | Film Winding Motor - Matsushita |
| Total Power (kW) | 2.5 | Control System - Dasa Intelligent Self-developed Control System |
| Working Pressure (MPa) | 0.6-0.8 | Push Button Switch - Delixi |
| Equipment Weight (kg) | 145 | Circuit Breaker - Delixi |
| Equipment Dimensions L×W×H (mm) | 940×785×1400 | Relay - Delixi |
| Gross Weight (kg) | 297 | Fuse Holder - Delixi |
| Net Weight (kg) | 297 | Vacuum Pump - Feiyue 20 Pump |
| Package Dimensions L×W×H (mm) | 1030×820×1560 | |
| Max Tray Size (mm) Output 1 | 310×200×80 (*1) | |
| Max Tray Size (mm) Output 2 | 200×140×80 (*2) |
Product Overview

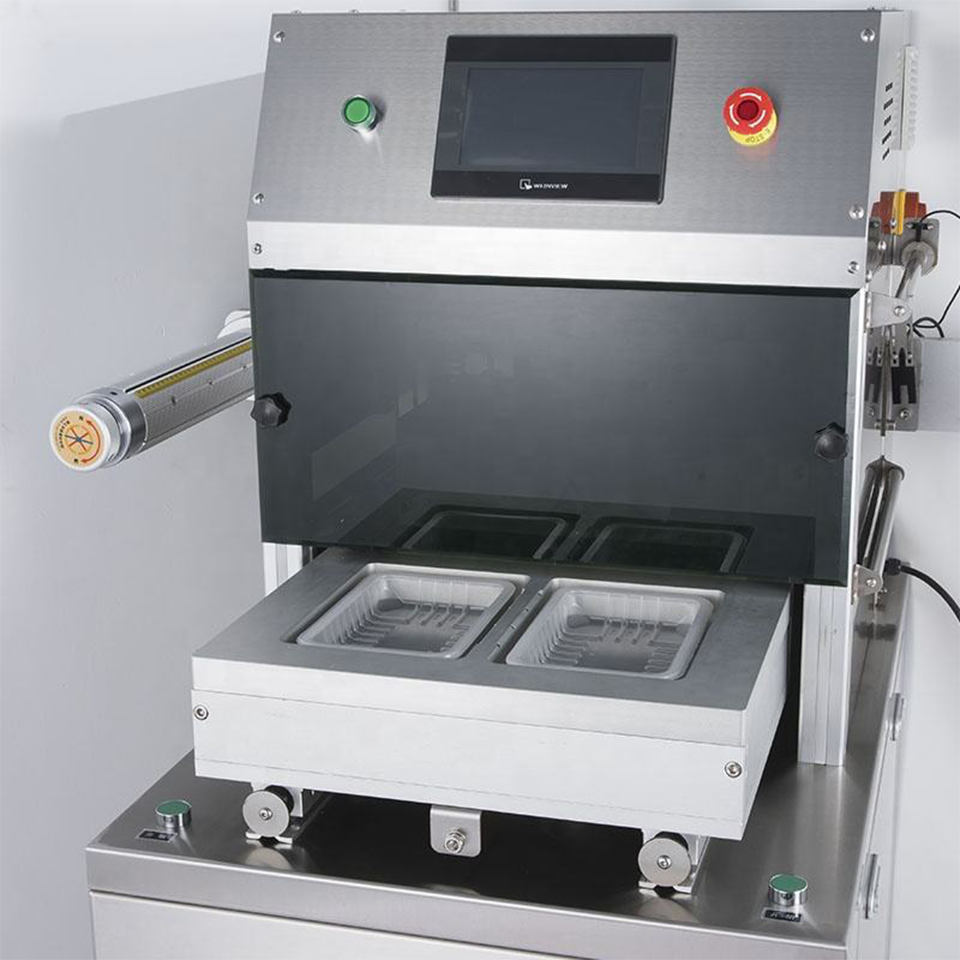

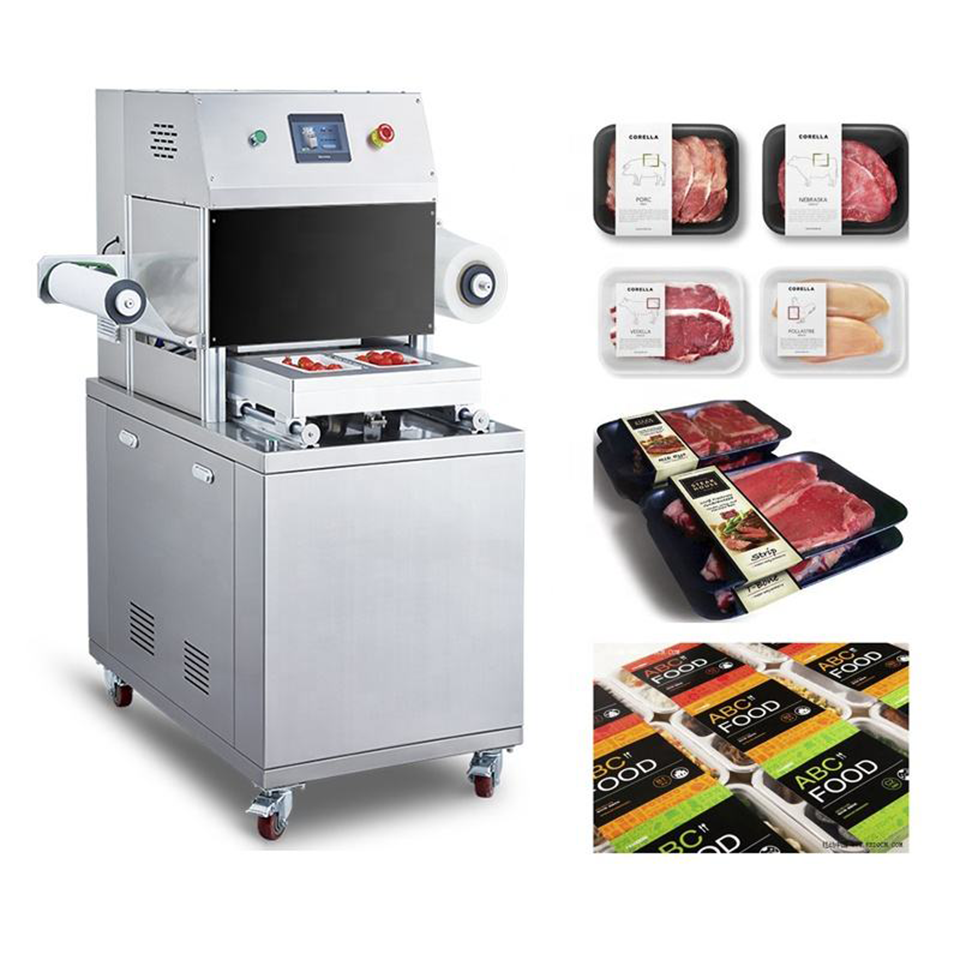

The DQ305L-V Vertical Modified Atmosphere Packaging Machine delivers professional-grade food preservation through advanced vacuum replacement technology, achieving exceptional ≥99% gas replacement rates with precise ±2% mixing accuracy. Engineered with a durable stainless steel structure and 6061 aluminum molds, this system ensures reliable 3-4 cycle/minute operation while maintaining perfect atmosphere control. Equipped with a 20 m³/h vacuum pump and Airtac pneumatic components, it provides consistent performance for medium-scale production needs. The intuitive Kunlun Tongtao touchscreen and self-developed control system make sophisticated MAP packaging accessible for food processors seeking to enhance product freshness and shelf life.
Key Features
-
Advanced Gas Control - Maintains ≥99% gas replacement rate with ±2% accuracy for optimal preservation
-
Efficient Vacuum System - 20 m³/h pump capacity ensures complete air removal and precise gas flushing
-
Robust Construction - Stainless steel frame with precision aluminum molds withstands continuous operation
-
Professional Components - Features Airtac cylinders, Delta power supply, and self-developed photoelectric sensors
-
Flexible Production - Dual-output configuration processes 240-400 packages hourly across multiple tray sizes
Applications
-
Meat & Poultry - Ideal for fresh cuts, portioned products, and value-added meats
-
Prepared Foods - Perfect for ready-to-eat meals, ingredient kits, and meal prep services
-
Fresh Produce - Excellent for seasonal fruits, vegetables, and salad mixes
-
Specialty Items - Suitable for dairy products, baked goods, and gourmet foods
Technical Advantages
-
Consistent vacuum replacement performance across all cycles
-
Quick change capability between different tray configurations
-
Energy-efficient operation with optimized 2.5kW power consumption
-
Compact vertical design maximizes production space utilization
- Compatible with various film types and packaging materials
产品关键词与 GEO / AI 搜索信号
这一部分帮助买家和 AI 搜索引擎识别产品型号、分类、应用关键词和供应商背景。
关键词
GEO / AI 上下文
- 产品名称：DQ305L-V 立式 MAP 真空 包装 设备 带280mm
- SKU / 型号：HB-24
- 分类：Packaging Machine / MAP Packaging Machine / Modified Atmosphere Packaging Machine
- 供应商：济南舜翔央厨，为国际 B2B 买家提供商厨与食品设备。
产品 FAQ
DQ305L-V 立式 MAP 真空 包装 设备 带280mm 适用于哪些项目？
DQ305L-V 立式 MAP 真空 包装 设备 带280mm 主要适用于中央厨房、商用厨房、食品加工厂、餐饮连锁和团餐配送项目。具体配置需要结合产能、物料、场地、电压、卫生要求和交付条件确认。
这款产品是否支持定制或 OEM？
在双方书面确认的前提下，可根据项目需求评估电压、尺寸、材质、功能、标识、包装和配套方案等定制事项。最终范围以报价单、合同、订单确认或形式发票为准。
保修、备件、退货或更换如何处理？
保修、维修、备件、退货和更换需结合产品类别、定制程度、使用状态、安装环境、运输条件和付款状态判断，并以双方最终书面文件及适用法律法规为准。
如何获得 HB-24 的准确报价？
请提供目标产品、数量、目的港或收货地、电源要求、使用场景和交期需求。我们会根据项目信息、配置、包装、运输和贸易条款提供书面报价。
