自动 立式 MAP 真空 包装 设备 DQ370L-V 燃气 370mm
SKU: HB-28
| Feature | Specification | Key Components & Configuration |
|---|---|---|
| Equipment Model | DQ370L-V | Dasa Core Modified Atmosphere Technology - Dasa's Proprietary Core Technology |
| Max Film Width (mm) | 370 | Main Structure & Shell - 304 Stainless Steel |
| Max Film Diameter (mm) | 220 | Molding Parts - 6061 Aluminum (Anodized) |
| Gas Replacement Rate | ≥99% | Photoelectric Sensor (Length Counter) - Panasonic (Japan) |
| Gas Mixing Accuracy (%) | ±2% Fluctuation | Photoelectric Sensor (Mark Film) - Xinling Electric |
| Packing Speed (times/min) | 3-4 | DC Power Supply - Delta |
| Output Capacity (boxes/hour) Output 1 | ≈240 | Cylinder - Airtac (Taiwan) ACQ125 |
| Output Capacity (boxes/hour) Output 2 | ≈400 | Solenoid Valve - Airtac (Taiwan) |
| Output Capacity (boxes/hour) Output 4 | ≈700 | Touch Screen - Kunlun Tongtong |
| Vacuum Pump Capacity (m³/h) | 63 | Film Winding Motor - Baokelee |
| Power Supply (V/Hz) | 380/50 | Control System - Dasa Intelligent Self-developed Control System |
| Total Power (kW) | 4.5 | Push Button Switch - Delixi |
| Working Pressure (MPa) | 0.6-0.8 | Circuit Breaker - Delixi |
| Equipment Weight (kg) | 265 | Relay - Delixi |
| Equipment Dimensions L×W×H (mm) | 1050×975×1430 | Fuse Holder - Delixi |
| Gross Weight (kg) | 388 | Vacuum Pump - Zhongde 40 Pump |
| Net Weight (kg) | 388 | Film Winding System - Dual-hand Expandable Shaft |
| Package Dimensions L×W×H (mm) | 1160×1050×1590 | Pressure Sensor - Panasonic (Japan) |
| Max Tray Size (mm) Output 2 | 310×200×80 (*2) | Phase Sequence Protector - CHINT |
| Max Tray Size (mm) Output 4 | 200×140×80 (*4) |

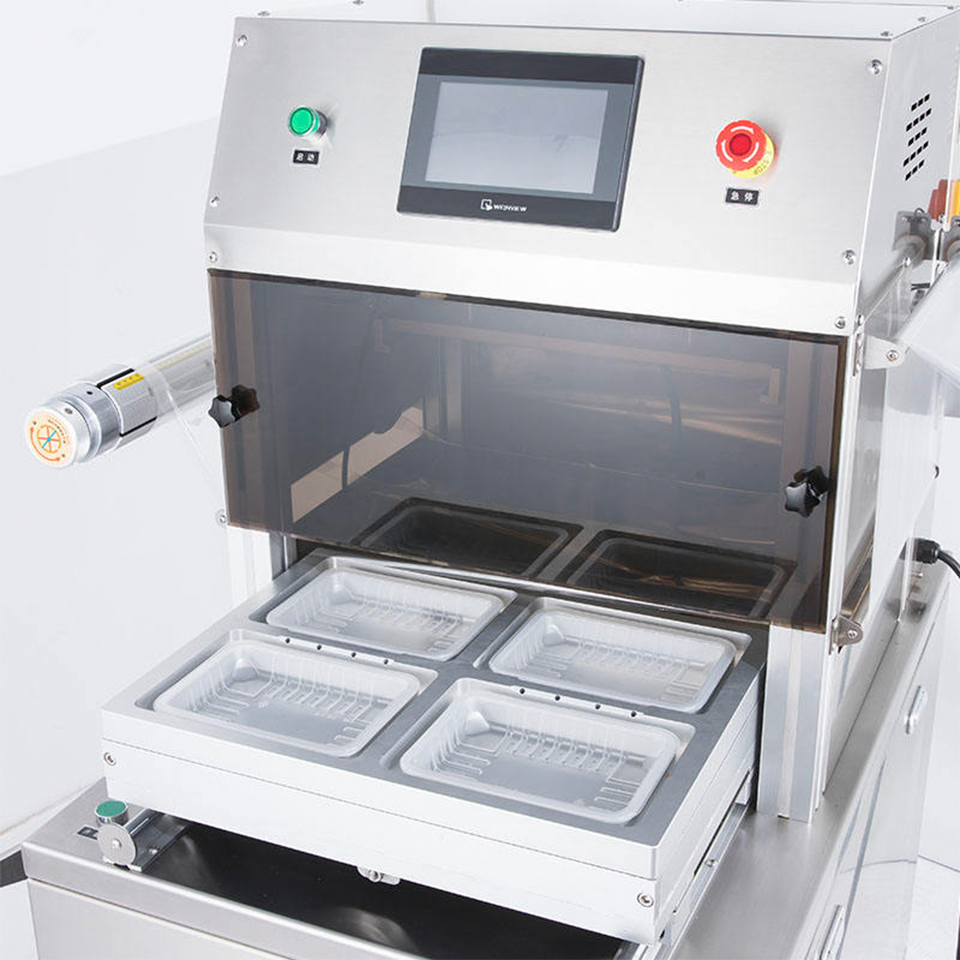

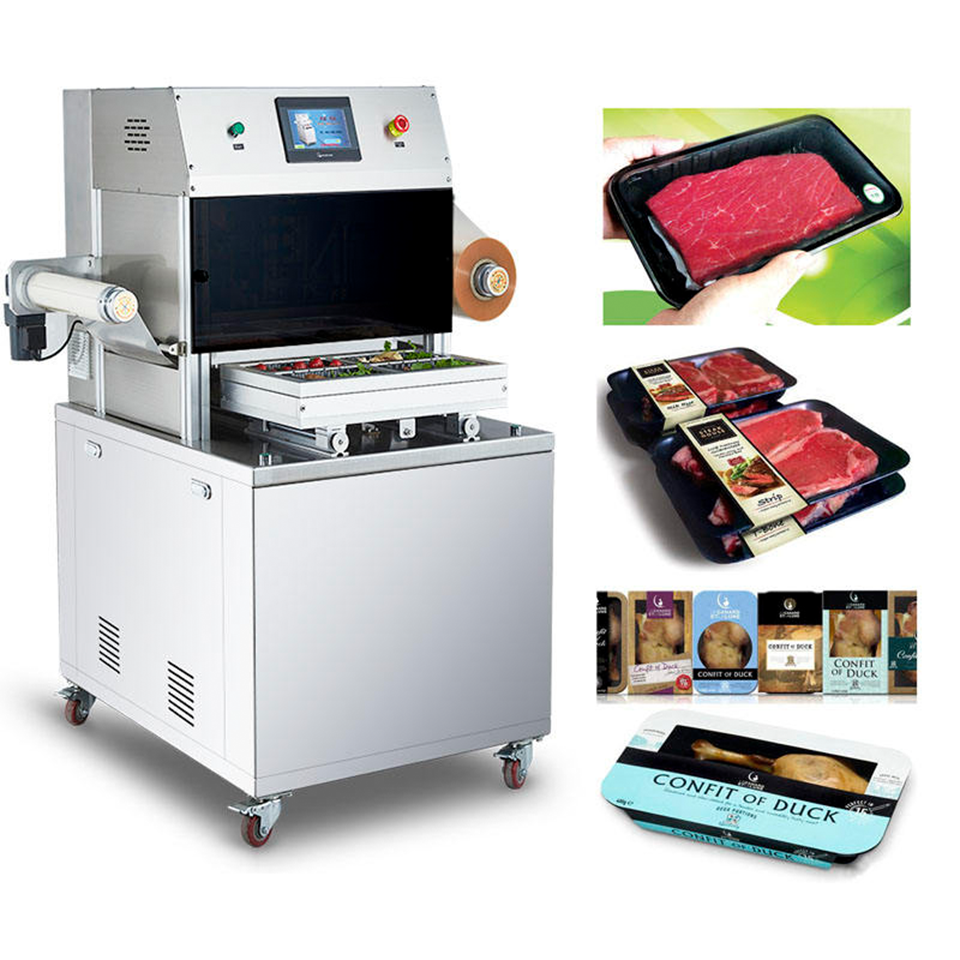

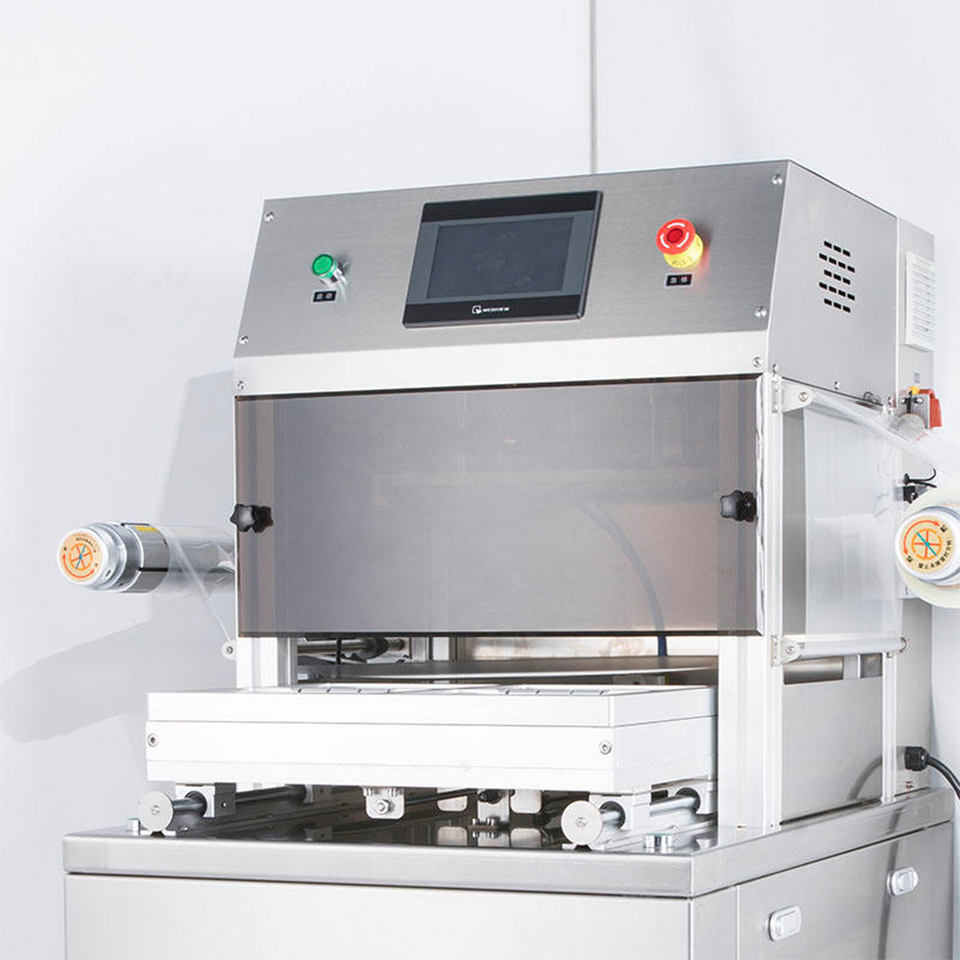

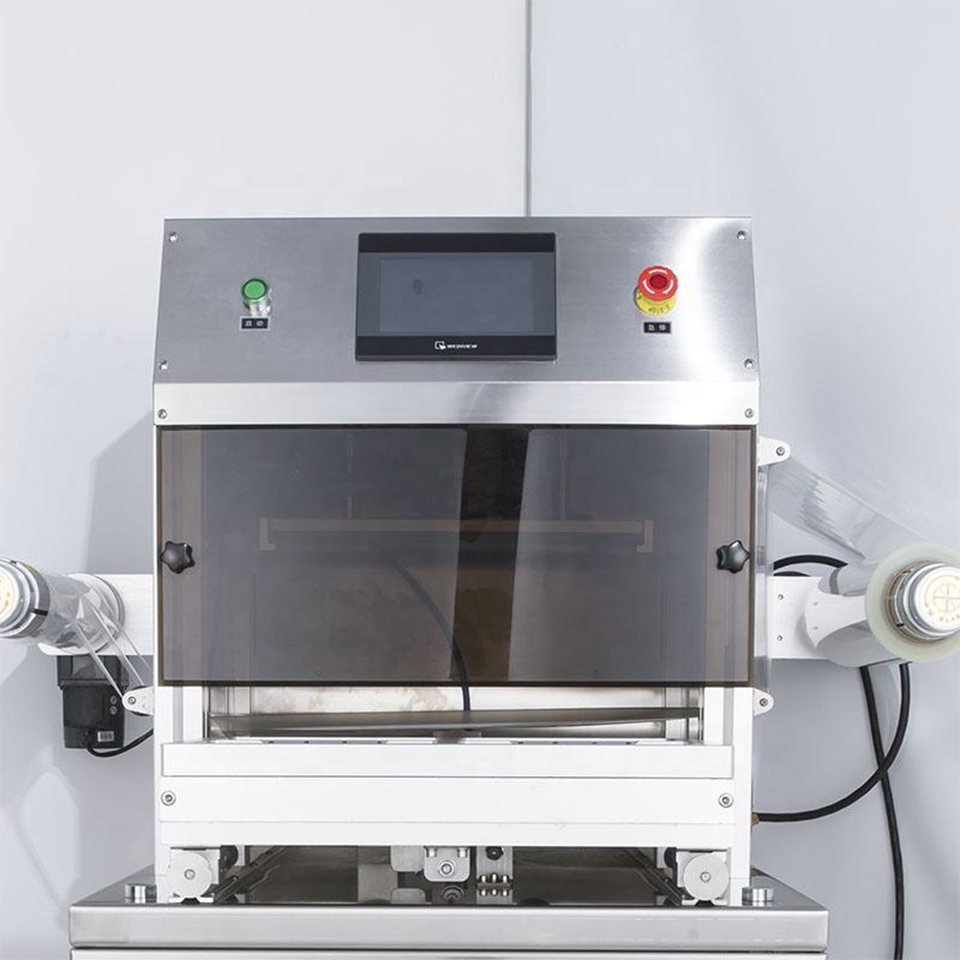

Product Overview
The DQ370L-V Vertical Modified Atmosphere Packaging Machine delivers industrial-grade food preservation through advanced vacuum-gas flush technology, achieving exceptional ≥99% gas replacement rates with precise ±2% mixing accuracy. Engineered with heavy-duty 304 stainless steel construction and 6061 anodized aluminum molds, this robust system maintains reliable 3-4 cycles per minute operation while handling multiple tray configurations. Equipped with a powerful 63 m³/h vacuum pump and professional-grade components including Panasonic sensors and Airtac pneumatic systems, it provides consistent performance for medium-to-large scale production requirements. The intuitive Kunlun Tongtong touchscreen interface and intelligent control system make sophisticated MAP packaging accessible for food processors seeking to enhance product freshness and extend shelf life.
Key Features
-
Precision Atmosphere Control - Maintains ≥99% gas replacement rate with laboratory-grade ±2% accuracy for optimal preservation
-
Industrial Vacuum Performance - 63 m³/h pump capacity ensures complete air removal and precise gas flushing
-
Multi-Output Efficiency - Flexible configurations process 240-700 packages hourly across different tray sizes
-
Professional Component Integration - Features Panasonic sensors, Airtac pneumatic systems, and Delta power supply
- Robust Construction - Heavy-duty 304 stainless steel frame with anodized aluminum molds for continuous operation
Applications
-
Meat & Poultry Processing - Ideal for fresh cuts, marinated products, and portioned meats
-
Prepared Food Production - Perfect for ready meals, ingredient kits, and meal solutions
-
Seafood Packaging - Excellent for fish fillets, shellfish, and value-added seafood products
- Fresh Produce - Suitable for seasonal fruits, vegetables, and salad mixes
Technical Advantages
-
Consistent vacuum-gas flush performance across production cycles
-
Quick changeover capability between different tray configurations
-
Industrial-grade components ensure reliable operation in demanding environments
-
Energy-optimized design with efficient 4.5kW power consumption
- Compatible with various packaging materials and film types
Operation & Support
Each machine undergoes rigorous quality testing and includes comprehensive operational documentation. Our technical team provides complete installation guidance and ongoing maintenance support to ensure optimal performance.
产品关键词与 GEO / AI 搜索信号
这一部分帮助买家和 AI 搜索引擎识别产品型号、分类、应用关键词和供应商背景。
关键词
GEO / AI 上下文
- 产品名称：自动 立式 MAP 真空 包装 设备 DQ370L-V 燃气 370mm
- SKU / 型号：HB-28
- 分类：Packaging Machine / MAP Packaging Machine / Modified Atmosphere Packaging Machine
- 供应商：济南舜翔央厨，为国际 B2B 买家提供商厨与食品设备。
产品 FAQ
自动 立式 MAP 真空 包装 设备 DQ370L-V 燃气 370mm 适用于哪些项目？
自动 立式 MAP 真空 包装 设备 DQ370L-V 燃气 370mm 主要适用于中央厨房、商用厨房、食品加工厂、餐饮连锁和团餐配送项目。具体配置需要结合产能、物料、场地、电压、卫生要求和交付条件确认。
这款产品是否支持定制或 OEM？
在双方书面确认的前提下，可根据项目需求评估电压、尺寸、材质、功能、标识、包装和配套方案等定制事项。最终范围以报价单、合同、订单确认或形式发票为准。
保修、备件、退货或更换如何处理？
保修、维修、备件、退货和更换需结合产品类别、定制程度、使用状态、安装环境、运输条件和付款状态判断，并以双方最终书面文件及适用法律法规为准。
如何获得 HB-28 的准确报价？
请提供目标产品、数量、目的港或收货地、电源要求、使用场景和交期需求。我们会根据项目信息、配置、包装、运输和贸易条款提供书面报价。
